This scenrio was given to me by someone who stopped by the blog and wondered if it was possible to swap out some of the kit infront of his ISA box with Vyatta...the answer of course was yes!
Here is the diagram:
Here are the videos:
Part1:
Initial Setup and Testing
Vyatta - Example of OpenVPN infront of Microsoft ISA Server - Part 1 from Richard Vimeo on Vimeo.
Part2:
Second part of the lab setup
Vyatta - Example of OpenVPN infront of Microsoft ISA Server - Part 2 from Richard Vimeo on Vimeo.
Part 3
Load Balancing
Certificate Setup
OpenVPN Site to Site setup
Vyatta - Example of OpenVPN infront of Microsoft ISA Server - Part 3 from Richard Vimeo on Vimeo.
Part 4:
Certificate Setup/signing/installing etc
OpenVPN Site to Site setup continued..
OpenVPN Remote Access setup (+Client)
Vyatta - Example of OpenVPN infront of Microsoft ISA Server - Part 4 from Richard Vimeo on Vimeo.
Part 5
DMZ Setup
DMZ Routing & NAT
Testing!
Vyatta - Example of OpenVPN infront of Microsoft ISA Server - Part 5 from Richard Vimeo on Vimeo.
Configs!
R1
/**********************************************************************\
firewall {
all-ping enable
broadcast-ping disable
conntrack-table-size 32768
conntrack-tcp-loose enable
ip-src-route disable
ipv6-receive-redirects disable
ipv6-src-route disable
log-martians enable
name ALLOW_ESTABLISHED {
default-action drop
rule 10 {
action accept
state {
established enable
}
}
}
receive-redirects disable
send-redirects enable
source-validation disable
syn-cookies enable
}
interfaces {
ethernet eth0 {
address 98.63.88.81/29
address 98.63.88.82/29
address 98.63.88.83/29
address 98.63.88.84/29
address 98.63.88.85/29
description ISP1
duplex auto
hw-id 00:0c:29:7f:b2:7d
smp_affinity auto
speed auto
}
ethernet eth1 {
address 75.93.91.193/29
address 75.93.91.194/29
address 75.93.91.195/29
address 75.93.91.196/29
description ISP2
duplex auto
hw-id 00:0c:29:7f:b2:87
smp_affinity auto
speed auto
}
ethernet eth2 {
address 10.0.12.1/24
description R1-ISA
duplex auto
hw-id 00:0c:29:7f:b2:91
smp_affinity auto
speed auto
}
ethernet eth3 {
address 10.0.2.1/24
description R1-DMZ
duplex auto
hw-id 00:0c:29:7f:b2:9b
smp_affinity auto
speed auto
}
loopback lo {
}
openvpn vtun0 {
local-host 98.63.88.81
mode server
replace-default-route {
}
server {
subnet 10.1.8.0/24
}
tls {
ca-cert-file /etc/openvpn/ca.crt
cert-file /etc/openvpn/r1.crt
dh-file /etc/openvpn/dh1024.pem
key-file /etc/openvpn/r1.key
}
}
openvpn vtun1 {
local-address 10.1.9.1
local-host 75.93.91.193
mode site-to-site
remote-address 10.1.9.2
remote-host 213.123.123.10
tls {
ca-cert-file /etc/openvpn/ca.crt
cert-file /etc/openvpn/r1.crt
dh-file /etc/openvpn/dh1024.pem
key-file /etc/openvpn/r1.key
role passive
}
}
}
load-balancing {
wan {
flush-connections
interface-health eth0 {
failure-count 2
nexthop 98.63.88.86
success-count 1
test 10 {
ping
resp-time 5
target 98.63.88.86
}
}
interface-health eth1 {
failure-count 1
nexthop 75.93.91.198
success-count 1
test 10 {
ping
resp-time 5
target 75.93.91.198
}
}
rule 10 {
destination {
address !10.0.0.0/16
}
inbound-interface eth2
interface eth0 {
weight 1
}
interface eth1 {
weight 1
}
protocol all
}
rule 20 {
destination {
address !10.0.0.0/16
}
inbound-interface eth3
interface eth0 {
weight 1
}
interface eth1 {
weight 1
}
protocol all
}
rule 30 {
destination {
address !10.0.0.0/16
}
inbound-interface vtun0
interface eth0 {
weight 1
}
interface eth1 {
weight 1
}
protocol all
}
}
}
protocols {
static {
interface-route 10.0.10.0/24 {
next-hop-interface vtun1 {
}
}
route 0.0.0.0/0 {
next-hop 75.93.91.198 {
}
next-hop 98.63.88.86 {
}
}
route 10.0.0.0/24 {
next-hop 10.0.12.2 {
}
}
route 10.0.1.0/24 {
blackhole {
}
}
}
}
service {
dhcp-server {
disabled false
shared-network-name POOL1 {
authoritative disable
subnet 192.168.10.0/24 {
default-router 192.168.10.1
dns-server 192.168.10.1
domain-name Vyatta.local
lease 86400
start 192.168.10.10 {
stop 192.168.10.200
}
}
}
}
dns {
forwarding {
cache-size 150
listen-on eth2
listen-on eth3
listen-on vtun0
name-server 208.67.222.222
name-server 208.67.220.220
}
}
nat {
rule 10 {
destination {
address 75.93.91.194
port 25
}
inbound-interface eth1
inside-address {
address 10.0.2.10
port 25
}
protocol tcp
type destination
}
}
ssh {
allow-root true
port 22
protocol-version v2
}
}
system {
host-name R1
login {
user root {
authentication {
encrypted-password $1$ORKO400D$9GoL/vifapZLo3p.sLkUs/
plaintext-password ""
}
level admin
}
user vyatta {
authentication {
encrypted-password $1$Z9oMjC/m$r.T2vNILnVuZnIwkKhg58.
}
level admin
}
}
ntp-server 0.vyatta.pool.ntp.org
package {
auto-sync 1
repository community {
components main
distribution stable
password ""
url http://packages.vyatta.com/vyatta
username ""
}
repository kenwood {
components main
distribution kenwood
password ""
url http://packages.vyatta.com/vyatta-dev/kenwood/unstable/
username ""
}
repository lenny {
components main
distribution lenny
password ""
url http://packages.vyatta.com/debian/
username ""
}
}
syslog {
global {
facility all {
level notice
}
facility protocols {
level debug
}
}
}
time-zone GMT
}
/* Warning: Do not remove the following line. */
/* === vyatta-config-version: "cluster@1:dhcp-relay@1:dhcp-server@4:firewall@3:ipsec@1:nat@3:quagga@1:system@1:vrrp@1:wanloadbalance@1:webgui@1" === */
/* Release version: VC6_a2 */
/**********************************************************************\
R2
/**********************************************************************\
firewall {
all-ping enable
broadcast-ping disable
conntrack-table-size 32768
conntrack-tcp-loose enable
ip-src-route disable
ipv6-receive-redirects disable
ipv6-src-route disable
log-martians enable
name ALLOW_ESTABLISHED {
default-action drop
rule 10 {
action accept
state {
established enable
}
}
}
receive-redirects disable
send-redirects enable
source-validation disable
syn-cookies enable
}
interfaces {
ethernet eth0 {
address 213.123.123.10/24
description Outside
duplex auto
hw-id 00:0c:29:f5:c1:84
smp_affinity auto
speed auto
}
ethernet eth1 {
address 10.0.10.1/24
description Inside
duplex auto
hw-id 00:0c:29:f5:c1:8e
smp_affinity auto
speed auto
}
ethernet eth2 {
description DMZ
duplex auto
hw-id 00:0c:29:f5:c1:98
smp_affinity auto
speed auto
}
loopback lo {
}
openvpn vtun1 {
local-address 10.1.9.2
mode site-to-site
remote-address 10.1.9.1
remote-host 75.93.91.193
tls {
ca-cert-file /etc/openvpn/ca.crt
cert-file /etc/openvpn/r2.crt
key-file /etc/openvpn/r2.key
role active
}
}
}
protocols {
static {
interface-route 10.0.0.0/24 {
next-hop-interface vtun1 {
}
}
interface-route 10.0.2.0/24 {
next-hop-interface vtun1 {
}
}
interface-route 10.0.12.0/24 {
next-hop-interface vtun1 {
}
}
route 0.0.0.0/0 {
next-hop 213.123.123.1 {
}
}
}
}
service {
dhcp-server {
disabled false
shared-network-name POOL1 {
authoritative disable
subnet 192.168.10.0/24 {
default-router 192.168.10.1
dns-server 192.168.10.1
domain-name Vyatta.local
lease 86400
start 192.168.10.10 {
stop 192.168.10.200
}
}
}
}
dns {
forwarding {
cache-size 150
listen-on eth1
name-server 208.67.222.222
name-server 208.67.220.220
}
}
nat {
rule 10 {
destination {
address !10.0.0.0/16
}
outbound-interface eth0
source {
address 10.0.10.0/24
}
type masquerade
}
}
ssh {
allow-root true
port 22
protocol-version v2
}
}
system {
host-name R2
login {
user root {
authentication {
encrypted-password $1$ORKO400D$9GoL/vifapZLo3p.sLkUs/
plaintext-password ""
}
level admin
}
user vyatta {
authentication {
encrypted-password $1$Z9oMjC/m$r.T2vNILnVuZnIwkKhg58.
}
level admin
}
}
ntp-server 0.vyatta.pool.ntp.org
package {
auto-sync 1
repository community {
components main
distribution stable
password ""
url http://packages.vyatta.com/vyatta
username ""
}
repository kenwood {
components main
distribution kenwood
password ""
url http://packages.vyatta.com/vyatta-dev/kenwood/unstable/
username ""
}
repository lenny {
components main
distribution lenny
password ""
url http://packages.vyatta.com/debian/
username ""
}
}
syslog {
global {
facility all {
level notice
}
facility protocols {
level debug
}
}
}
time-zone GMT
}
/* Warning: Do not remove the following line. */
/* === vyatta-config-version: "cluster@1:dhcp-relay@1:dhcp-server@4:firewall@3:ipsec@1:nat@3:quagga@1:system@1:vrrp@1:wanloadbalance@1:webgui@1" === */
/* Release version: VC6_a2 */
/**********************************************************************\

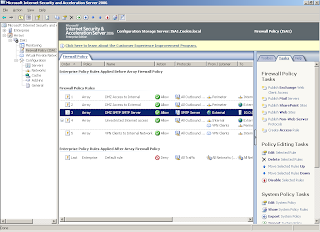

ISA Screenshots:
Enjoy!
